Flagstaff V-Lite Travel Trailer
Floorplans and Specifications
|

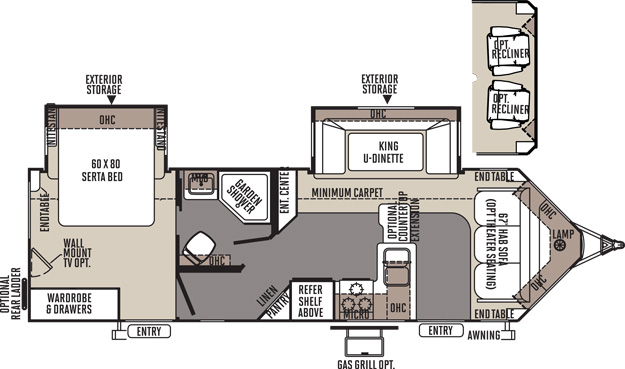

Flagstaff V-Lite 28 WRBS Travel Trailer
| Dry
Hitch Weight |
631 lb. (286 kg
) |
| Dry
Ship Weight |
6,247 lb. (2,834
kg ) |
| GVWR |
7,850 lb. (3,561
kg ) |
|
Cargo Carrying Capacity |
1,603 lb. (727
kg ) |
|
Exterior Length |
31 ft. 6 in.
(9.6 m) |
|
Exterior Height |
10 ft. 0 in.
(3.0 m) |
|
Exterior Width |
96 in. (2.4 m) |
|
Fresh Water Capacity |
43 gal. (163 L) |
| Gray
Water Capacity |
38 gal. (144 L) |
|
Black Water Capacity |
38 gal. (144 L) |
|
Awning Size |
21 ft. (6.4 m) |
|
|
|
|

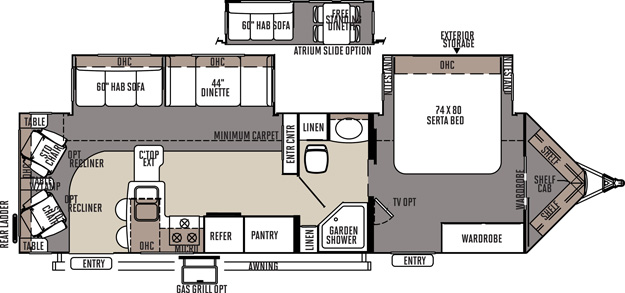

Flagstaff V-Lite 30 WRLS Travel Trailer
| Dry
Hitch Weight |
800 lb. (363 kg ) |
| Dry Ship
Weight |
6,801 lb. (3,085 kg
) |
| GVWR |
8,550 lb. (3,878 kg
) |
| Cargo
Carrying Capacity |
1,749 lb. (793 kg ) |
| Exterior
Length |
34 ft. 5 in. (10.5
m) |
| Exterior
Height |
10 ft. 0 in. (3.0 m) |
| Exterior
Width |
96 in. (2.4 m) |
| Fresh
Water Capacity |
43 gal. (163 L) |
| Gray
Water Capacity |
38 gal. (144 L) |
| Black
Water Capacity |
38 gal. (144 L) |
| Awning
Size |
18 ft. (5.5 m) |
|
|
|
Flagstaff
V-Lite 30 WRLTS Travel Trailer
| Dry
Hitch Weight |
909 lb. (412 kg ) |
| Dry Ship
Weight |
7,132 lb. (3,235 kg
) |
| GVWR |
8,650 lb. (3,924 kg
) |
| Cargo
Carrying Capacity |
1,518 lb. (689 kg ) |
| Exterior
Length |
34 ft. 5 in. (10.5
m) |
| Exterior
Height |
10 ft. 0 in. (3.0 m) |
| Exterior
Width |
96 in. (2.4 m) |
| Fresh
Water Capacity |
43 gal. (163 L) |
| Gray
Water Capacity |
38 gal. (144 L) |
| Black
Water Capacity |
38 gal. (144 L) |
| Awning
Size |
16 ft. (4.9 m) |
|
|
|

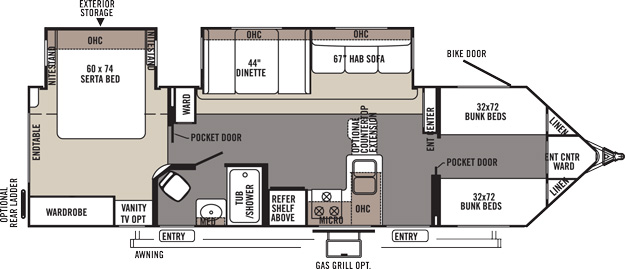

Flagstaff
V-Lite 30 WTBS Travel Trailer
| Dry
Hitch Weight |
807 lb. (366 kg ) |
| Dry Ship
Weight |
6,728 lb. (3,052 kg
) |
| GVWR |
8,550 lb. (3,878 kg
) |
| Cargo
Carrying Capacity |
1,822 lb. (826 kg ) |
| Exterior
Length |
34 ft. 5 in. (10.5
m) |
| Exterior
Height |
10 ft. 0 in. (3.0 m) |
| Exterior
Width |
96 in. (2.4 m) |
| Fresh
Water Capacity |
43 gal. (163 L) |
| Gray
Water Capacity |
38 gal. (144 L) |
| Black
Water Capacity |
38 gal. (144 L) |
| Awning
Size |
20 ft. (6.1 m |
|
|
|

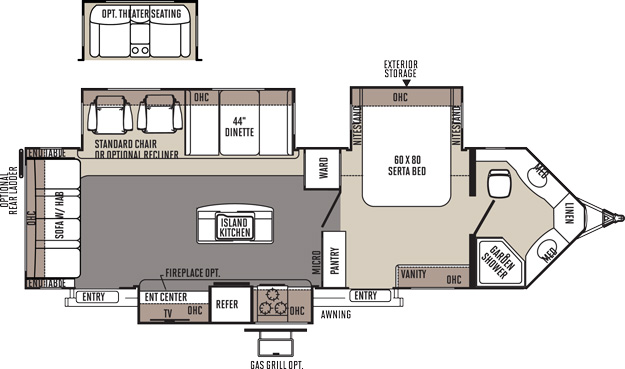

Flagstaff
V-Lite 30 WFKSS Travel Trailer
| Dry
Hitch Weight |
894 lb. (406 kg ) |
| Dry Ship
Weight |
6,950 lb. (3,152 kg
) |
| GVWR |
8,650 lb. (3,924 kg
) |
| Cargo
Carrying Capacity |
1,700 lb. (771 kg ) |
| Exterior
Length |
34 ft. 5 in. (10.5
m) |
| Exterior
Height |
10 ft. 0 in. (3.0 m) |
| Exterior
Width |
96 in. (2.4 m) |
| Fresh
Water Capacity |
43 gal. (163 L) |
| Gray
Water Capacity |
76 gal. (288 L) |
| Black
Water Capacity |
38 gal. (144 L) |
| Awning
Size |
21 ft. (6.4 m) |
|
|

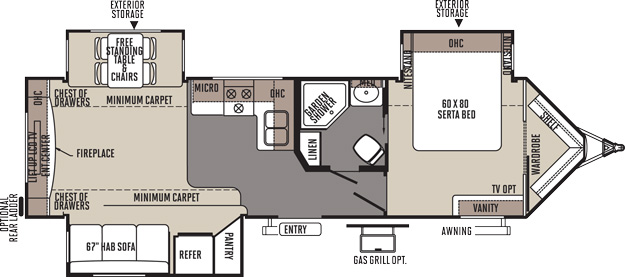

Flagstaff V-Lite 30 WRLTSA Travel Trailer
| Dry
Hitch Weight |
952 lb. (432 kg
) |
| Dry
Ship Weight |
6,998 lb. (3,174
kg ) |
| GVWR |
8,650 lb. (3,924
kg ) |
|
Cargo Carrying Capacity |
1,652 lb. (749
kg ) |
|
Exterior Length |
34 ft. 5 in.
(10.5 m) |
|
Exterior Height |
10 ft. 0 in.
(3.0 m) |
|
Exterior Width |
96 in. (2.4 m) |
|
Fresh Water Capacity |
43 gal. (163 L) |
| Gray
Water Capacity |
38 gal. (144 L) |
|
Black Water Capacity |
38 gal. (144 L) |
|
Awning Size |
16 ft. (4.9 m) |
|
|
| Floor plans and specifications are based on the latest product
information. Forest River, Inc. reserves the right to make changes in
drawings and specifications at any time without notice and assumes no
responsibility for any errors in the site. The model number does
not necessarily reflect the overall length of a particular unit. |
|
|
V-Lite
Standard and Optional Features
| V-Lite Standards |
- Decorative Solid Wood Slide Out Fascia
- Solid Wood and Raised Panel Doors and
Drawers
- Screwed and Glued Cabinetry
- Residential Full Extension Metal Drawer
Guides in Kitchen
- Flooring: Carpet and an Engineered Mold
and Mildew Resistant Floor Covering
- Floor Ducted Furnace
- 12 Volt Power Plug Hook-up
- Monitor Panel
- Battery Disconnect Switch
- 55 Amp Converter With Charger
- Interior Floor Light by Entrance Door
- Directional Reading Lights on Sofa Slides
- Residential Dome Style Lights Over Sofa
and Table
- Upgraded Recessed Lighting Around
Medicine Cabinet
- LCD TV With 5.1 Digital Dolby Surround
Sound Speaker System
- Digital AM/FM/DVD w/ Remote
- MP3 Player Hook-Up
- Satellite Radio
- Air Hide-A-Bed Sofa w/ Storage (N/A
21WRS)
- Swivel Chair (Select Floorplans)
- End Table with Attached Lamp (Select
Floorplans)
- Designer Valances w/ Lambrequin Arms
- Day/Night Shades
- Aluminum Bed and Dinette Frames
- 44" Family Style Dinette (N/A 28WRBS,
30WRLTS)
- 48" X 84" Spacious King-U-Style Dinette
(Standard on 28WRBS and 30WRLTS; N/A 21WRS, 26WRB; Optional on all
other floorplans)
- Free-Standing High Pressure Laminated
Table with Swing Level Leg
- Auto Gas/Electric Refrigerator
- Three Burner High Output Gas Range
- Flush Mount Stone Cast Sinks with
Lift-Off Kitchen Faucets
- Residential One-Piece Sink Cover /
Cutting Board
- Trash Can in Kitchen (Most Floorplans)
- Tub Surround
- Bathroom Skylight
- Water Heater By-Pass Kit
- Residential Style Porcelain Bowl Foot
Flush Toilet
- Fully Laminated Aluminum Frame (Floor,
Sidewall, & Roof)
- Insulation Factors R-7 Side Wall, R-12
Floor and R-14 Roof
- Radius Roof
- Vinyl / Rubber Composite Roofing Membrane
- TV Antenna w/ Cable & Satellite Hook-Up
- Deluxe TPO High Gloss Front Cap
- Electric Slide-Out
- Decorative Frame Skirting
- 30" Entrance Door (Most Floorplans)
- Lighted Entry Step
- Large Grab Handles
- Outside Grill Prep w/ LP Hookup and
Backer
- Outside Shower
- Two 30 lb Gas Bottles
- Molded Bottle Cover
- Surface Coated Steel I-Beam Frame
- Stabilizer Jacks
- Torsion Axle, Rubber-Ryde Suspension
- Easy Lube Axles
- 15" Tires With Triple Step
- Enclosed Holding Tanks
- Electronically Controlled Heated Holding
Tanks
- Black Water Flush
|
| V-Lite Options
|
- Tuscan, Cherry, Hickory and Combo
Interior
- Minimum Carpet available
- 15,000 BTU Ducted Roof Air
- CSA
- LCD Bedroom TV
- La-Z-Boy® Leather Recliner Option:
Available ILO All Units with Barrel Chairs
- 48" X 84" Spacious King-U-Style Dinette
(Standard on 28WRBS and 30WRLTS; N/A 21WRS, 26WRB; Optional on all
other floorplans)
- Free-Standing Table and Chairs
- Stainless Steel Appliances
- Raised Refrigerator Panels
- Counter Top Extension (N/A 30WFKS)
- Extra Create-a-Breeze fan
- Heated Mattress
- Rear Ladder (N/A 21WRS)
- Awning Slide Topper
- Thermo Pane Window Upgrade
- Storm Windows
- Atrium Slide Windows (Super Slides)
- Outside Gas Grill and Worktable
- Power Front Jack
- Power Stabilizer Jacks
- Convenience Package D
- 13,500 BTU Ducted Air
- Upgraded 22" Gas Oven
- Microwave
- 110 DSI Gas/Electric Six Gallon “Quick
Recovery” Water Heater
- Residential Serta Mattress Upgrade
- Lamilux HG 4000 with High Gloss Finish
- Power Awning With Adjustable Rain Dump
- Windows w/ Tinted Safety Glass
- Outside Speakers
- Aluminum Wheels
- Spare Tire Carrier & Cover
- Standard Options
- Water-Pur Filtration System
- Create-a-Breeze Three Speed Fantastic
Vent
- Carbon Monoxide Detector
|
|
|
|
|
